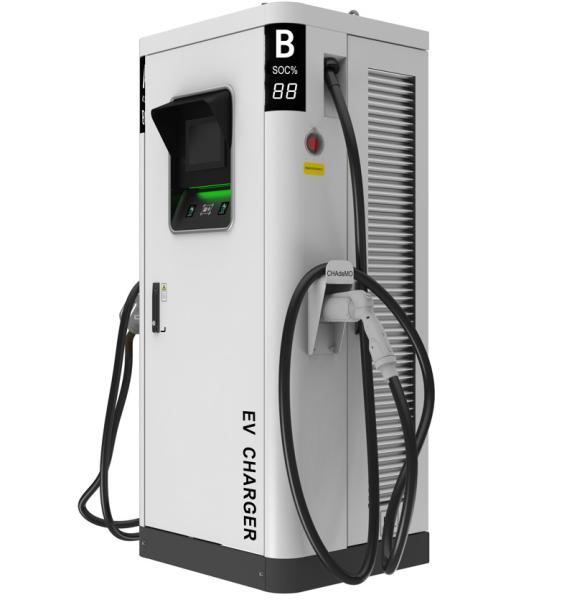

180kW Basic Version EV Charging Station High efficiency Double gun
for Outside
1.Descriptions
180kW EV DC charging heap is appropriate to urban extraordinary
charging stations (buses, mud trucks, sanitation vehicles,
coordinations vehicles, taxis, official vehicles, etc.), urban open
charging stations (private cars, commuters, buses), intercollegiate
interstate charging stations, etc. The EV charger embraces
worldwide high-frequency exchanging control supply module,
observing receives mechanical chips, and human-computer interface
receives mechanical color touch screen. The EV charger framework is
congruous with the national standard 2011,2015 and other electric
vehicle charging conventions.
2.Specifications
| Product name | DC EV Charger |
| Rated Power | 180kW |
| Input voltage | AC323-AC437V |
| Input current | ≤342A |
| Power factor | ≥0.99 |
| Output connector | CCS2 | CHAdeMO |
| Charging agreement | DIN70121 | CHAdeMO2.0 |
| Basic characteristics |
| Protection levels | IP54 |
| Startup mode | APP,QR(Customized),RFID, VIN(Customized) |
| Communication agreement | OCPP1.6J |
| Communication interface | 3G/4G/WIFI |
| Charging interface | 2(CCS2+CHAdeMO) |
| Power Switching | Support automatic power distribution, minimum switching unit 30kW |
| Work efficiency | ≥95% |
| Display screen | 7-inch LCD touch screen |
| Gun thread | 4.5m |
| Ambient Temperature | -20~+50℃ |
| Relative humidity | 5%～95%(No dewing) |
| Altitude | 2000m |
| Standby power loss | ≤ 99W |
| Site(W*D*H) | 800mm*600mm*1700mm |
| Weight | ≤330kg |
3.FQA
Why must I pick out your products?
A:Our organisation is an enterprise chief withinside the clever
charger enterprise. We have the gain of excessive first-rate and
occasional price. we will meet your needs.
Can I print my brand at the product?
A:Yes. Please tell us officially earlier than our manufacturing and
verify the layout first off primarily based totally on our sample.
Do you provide assure for the products?
A:Yes, we provide 2 years assurance to our products.
How to resolve the technical problem?
A:We have a expert group to hook up with you.24 hours after-carrier
consultancy only for you. If meet any problem,don`t hesitate to
touch us.
