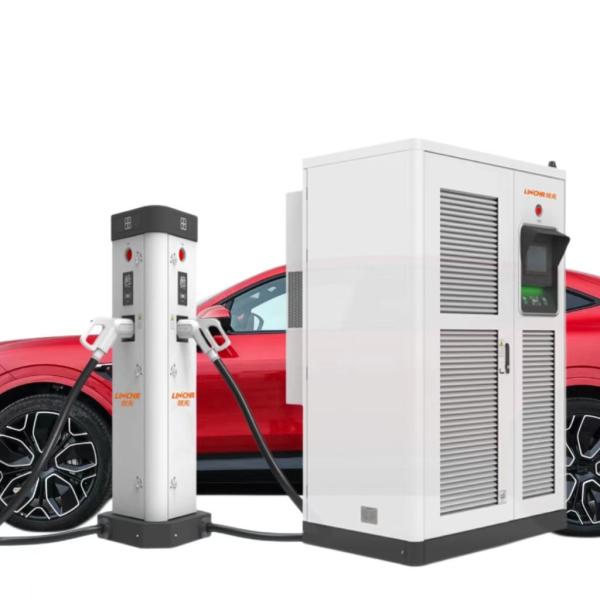

360kW GB/T 20234.3-2015 double gun with swipe or scan SOC Charger
Stationr
1.Descriptions
In order to more quickly charge the batteries of electric vehicles,
this 360kw DC double-gun charger converts AC power inside the
charger into DC power using a 400VAC (+/- 10%), 50Hz three-phase
input. Three-level charging, also known as DC fast charging, is now
the most popular charging method for electric vehicles. Large
electric vehicles are best suited for the Double Gun rapid charging
station, one of the fastest chargers on the market. With
flexibility in charging power, one vehicle can charge at 360 kW or
two vehicles can charge at 2x 180 kW simultaneously.
2.Specifications
| Product name | Double Gun Charging Station |
| Rated Power | 360kW |
| Input voltage | AC323V～AC437V |
| Input current | ≤685A |
| Power factor | ≥0.99 |
| Harmonic current | ≤3% |
| Output current | single 250A,double 500A |
| Basic characteristics |
| BMS | 12V/24V compatible |
| Work efficiency | 96% |
| Startup mode | SWIPING,SCAN,VIN |
| Interaction mode | 7-inch LCD touch screen |
| Communication interface | Ethernet,4G-LTE |
| Gun thread | 8m |
| Charging interface | 2 |
| Ambient Temperature | -30℃～+50℃ |
| Relative humidity | 5%～95% (No dewing) |
| Altitude | ≤2000m |
| Site(W*D*H) | 1200mm*910mm*1800mm |
| Protection levels | IP54 |
| Weight | 760KG |
| Perform standard | GB/T-18487.1-2015,GB/T-20234.3-2015 GB/T-27930-2015,JJG1149-2018 |
3.Functions
A. User authentication is practical, supporting a variety of
startup techniques such card swiping, code scanning, and automatic
identification.
B. The device offers high temperature monitoring capabilities, an
automatic cutoff feature for abnormal conditions, and
multi-redundant intelligent security protection for electrical,
software, and hardware.
C. Extreme cold and heat conditions can be worked in steadily
D. Over current, over voltage, and short circuit protection make
charging significantly safer.
